Electric heater

Home 万森 · 产品 Electric heater Blower electric heater

Blower electric heater

Functional Characteristics Specification Parameter

It heats the gas to a very high temperature.
efficient.
The temperature rise and fall is fast, up to 10 °C / S, the adjustment is fast and stable. The temperature of the controlled gas is not advanced or delayed, and the temperature control drifts indefinitely, which is suitable for automatic control.
Good mechanical properties: Because its heating element is an alloy material, it has better mechanical properties and strength than any heating element under the impact of high-pressure gas flow, which is a system and accessories that need to continuously heat the gas for a long time. The test is more advantageous.
Durable when not in violation of the rules of use.
The gas is clean and small.
Rated voltage：220V、380V
Nominal power： Explosion-proof grade：ExdⅡBT1-4
Maximum outlet temperature： Temperature control method：Automatic temperature control
Temperature control accuracy：±1℃
Power range： Power error range： Dielectric strength： Heating characteristics： Power adjustment factor： Temperature rating： Explosion-proof grade： Whether flame retardant： Ambient temperature： Place of use： Structure type：

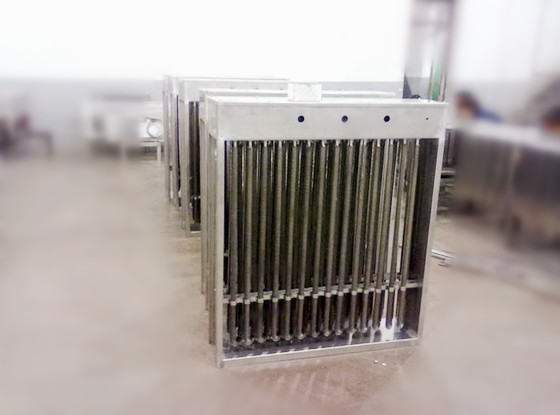

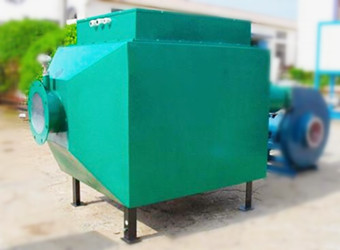

An blast electric heater is an electric heating device that primarily heats a gas stream. The heating element of the blast electric heater is a stainless steel electric heating tube, and the heater inner cavity is provided with a plurality of baffles (baffles) to guide the gas flow direction, prolong the residence time of the gas in the inner cavity, thereby making the gas full Heating, heating the gas evenly, improving heat exchange efficiency. The heating element of the blast-type electric heater is a stainless steel heating tube in which a heating wire is placed in a seamless steel pipe, and the void portion is filled with a magnesium oxide powder having a good thermal conductivity and insulation. When the current passes through the high temperature resistance wire, the generated heat is diffused to the surface of the heating tube by the crystalline magnesium oxide powder, and then transferred to the heated gas to achieve the purpose of heating.
